<?xml version="1.0" encoding="utf-8"?>

<Shell name="FormSetValuePartialExample" descriptors="xworker.swt.widgets.Shell" text="表单赋值和取值示例" RESIZE="true" width="800" height="700" label="表单部分赋值">
    <Composite name="mainComposite" label="Pratial set values">
        <GridLayout name="shellGirdLayout" numColumns="2"></GridLayout>
        <Group name="fromGroup1" text="表单1">
            <GridData name="formGroup1GridData" style="FILL_BOTH"></GridData>
            <DataObjectForm name="form1">
                <dataObjects>
                    <AbstractDataObject name="formExampleDataObject" editCols="1" storeSortDir="ASC" autoInitAction="autoInit">
                        <attribute name="textField" label="文本框"></attribute>
                        <attribute name="checkBox" label="单选框" inputtype="truefalse"></attribute>
                        <attribute name="radioButton" label="多选框" default="1" inputtype="radio">
                            <value name="1" label="男" value="1"></value>
                            <value name="2" label="女" value="2"></value>
                        </attribute>
                        <attribute name="select" label="下拉选择框" default="2" inputtype="select">
                            <value name="1" label="男" value="1"></value>
                            <value name="2" label="女" value="2"></value>
                        </attribute>
                        <attribute name="selectMulti" label="下拉多选框" default="1,2" inputtype="multSelect">
                            <value name="1" label="男" value="1"></value>
                            <value name="2" label="女" value="2"></value>
                        </attribute>
                        <attribute name="datePick" label="日期选择器" inputtype="datePick"></attribute>
                    </AbstractDataObject>
                </dataObjects>
            </DataObjectForm>
            <FillLayout name="formGroup1FillLayout"></FillLayout>
        </Group>
        <Group name="formGroup2" text="表单2">
            <GridData name="formGroup2GridData" style="FILL_BOTH"></GridData>
            <DataObjectForm name="form2">
                <dataObjects>
                    <AbstractDataObject name="formExampleDataObject" editCols="1" storeSortDir="ASC" autoInitAction="autoInit">
                        <attribute name="textArea" label="文本区" inputtype="textarea" colspan="2"></attribute>
                        <attribute name="codeText" label="代码着色文本区" inputtype="codeEditor" colspan="2" inputattrs="codeName=java codeType=java wrap=false fillBoth=true cols= rows=">
                            <default><![CDATA[//Form2拷贝到Form1
//取Form2的表单值
def form2Values = form2.doAction("getValues", actionContext);
//赋值到Form1表单
form1.doAction("setValues", actionContext, ["values": form2Values]);]]></default>
                        </attribute>
                    </AbstractDataObject>
                </dataObjects>
            </DataObjectForm>
            <FillLayout name="formGroup2FillLayout"></FillLayout>
        </Group>
        <Group name="formGroup3" text="表单3">
            <GridData name="formGroup3GridData" _xmeta_id_="formGroup2GridData" style="FILL_BOTH" horizontalSpan="2"></GridData>
            <DataObjectForm name="form3" _xmeta_id_="form2">
                <dataObjects>
                    <AbstractDataObject name="formExampleDataObject" editCols="1" storeSortDir="ASC" autoInitAction="autoInit">
                        <attribute name="textField" label="文本框"></attribute>
                        <attribute name="checkBox" label="单选框" inputtype="truefalse"></attribute>
                        <attribute name="radioButton" label="多选框" inputtype="radio">
                            <value name="1" label="男" value="1"></value>
                            <value name="2" label="女" value="2"></value>
                        </attribute>
                        <attribute name="select" label="下拉选择框" inputtype="select">
                            <value name="1" label="男" value="1"></value>
                            <value name="2" label="女" value="2"></value>
                        </attribute>
                        <attribute name="selectMulti" label="下拉多选框" inputtype="multSelect">
                            <value name="1" label="男" value="1"></value>
                            <value name="2" label="女" value="2"></value>
                        </attribute>
                        <attribute name="datePick" label="日期选择器" inputtype="datePick"></attribute>
                        <attribute name="textArea" label="文本区" inputtype="textarea" rowspan="1"></attribute>
                        <attribute name="codeText" label="代码着色文本区" inputtype="codeEditor" rowspan="3" inputattrs="codeName=java codeType=java wrap=false fillBoth=true cols= rows="></attribute>
                    </AbstractDataObject>
                </dataObjects>
            </DataObjectForm>
            <FillLayout name="formGroup3FillLayout" _xmeta_id_="formGroup2FillLayout"></FillLayout>
        </Group>
        <Composite name="buttonComposite" _xmeta_id_="23921">
            <GridData name="buttonCompositeGridData" _xmeta_id_="23922" style="FILL_HORIZONTAL" horizontalAlignment="END" horizontalSpan="2"></GridData>
            <RowLayout name="buttonCompositeRowLayout" _xmeta_id_="23923"></RowLayout>
            <Button name="copyForm1ToForm3" _xmeta_id_="23924" text="拷贝Form1到Form3">
                <RowData _xmeta_id_="23925" width="180"></RowData>
                <Listeners _xmeta_id_="23926">
                    <Listener name="copyForm1ToForm2Selection" _xmeta_id_="23927">
                        <FormSetValues descriptors="xworker.app.view.swt.widgets.form.DataObjectFormActions/@FormSetValues" formName="form3" partialValue="true" valueVariable="form1.doAction(&quot;getValues&quot;, actionContext)"></FormSetValues>
                    </Listener>
                </Listeners>
            </Button>
            <Button name="copyFomr2ToForm1" _xmeta_id_="23928" text="拷贝Form2到Form3">
                <RowData _xmeta_id_="23929" width="180"></RowData>
                <Listeners _xmeta_id_="23930">
                    <Listener name="copyFomr2ToForm1Selection" _xmeta_id_="23931">
                        <GroovyAction>
                            <code><![CDATA[def form2Values = form2.doAction("getValues", actionContext);
form3.doAction("setPartialValues", actionContext, ["values": form2Values]);]]></code>
                        </GroovyAction>
                    </Listener>
                </Listeners>
            </Button>
        </Composite>

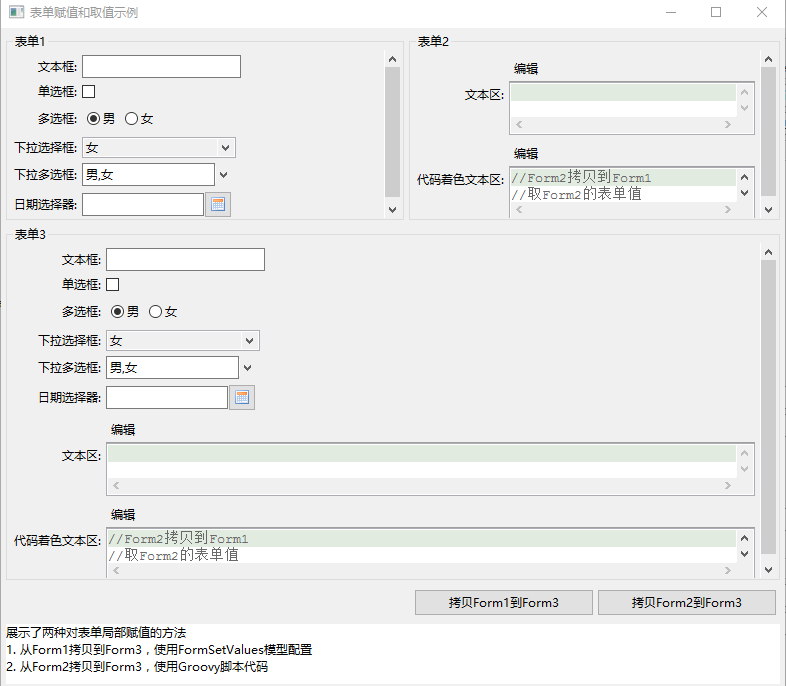

        <StyledText name="descText" style="MULTI" WRAP="true">
            <text><![CDATA[展示了两种对表单局部赋值的方法
1. 从Form1拷贝到Form3，使用FormSetValues模型配置
2. 从Form2拷贝到Form3，使用Groovy脚本代码]]></text>
            <GridData name="descTextGridData" style="FILL_HORIZONTAL" height="60" horizontalSpan="2"></GridData>
        </StyledText>
    </Composite>
    <FillLayout name="shellFillLayout"></FillLayout>
</Shell>
