<?xml version="1.0" encoding="utf-8"?>

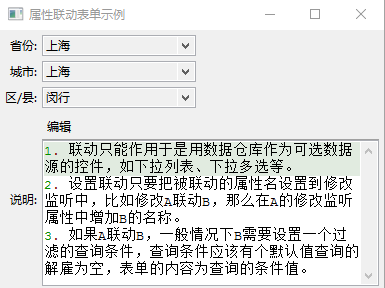

<Shell name="AttriuteRelationFormExample" descriptors="xworker.swt.widgets.Shell" text="属性联动表单示例" RESIZE="true" width="400" height="300">
    <FillLayout name="shellFillLayout"></FillLayout>
    <DataObjectForm name="form">
        <dataObjects>
            <AbstractDataObject name="exampleDataObject" editCols="1" storeSortDir="ASC" autoInitAction="autoInit">
                <attribute name="provinceId" _xmeta_id_="provicneId" label="省份" type="int" inputtype="select" modifyStoreListener="cityId" relationDataObject="xworker.example.app.dataobject.ProvinceDataObject" relationValueField="id" relationLabelField="value"></attribute>
                <attribute name="cityId" label="城市" type="int" inputtype="select" modifyStoreListener="areaId" relationDataObject="xworker.example.app.dataobject.CityDataObject" relationValueField="id" relationLabelField="value">
                    <SelectCondition name="provinceId" attributeName="provinceId" dataName="provinceId" value="-1"></SelectCondition>
                </attribute>
                <attribute name="areaId" label="区/县" type="int" inputtype="select" relationDataObject="xworker.example.app.dataobject.AreaDataObject" relationValueField="id" relationLabelField="value">
                    <SelectCondition name="cityId" attributeName="cityId" dataName="cityId" value="-1"></SelectCondition>
                </attribute>
                <thing name="province" _xmeta_id_="4430" label="ProvinceDataObject" dataObjectPath="xworker.example.app.dataobject.ProvinceDataObject" refAttributeName="id" localAttributeName="provicneId"></thing>
                <thing name="city" _xmeta_id_="4928" label="CityDataObject" dataObjectPath="xworker.example.app.dataobject.CityDataObject" refAttributeName="id" localAttributeName="cityId"></thing>
                <thing name="area" _xmeta_id_="5212" label="AreaDataObject" dataObjectPath="xworker.example.app.dataobject.AreaDataObject" refAttributeName="id" localAttributeName="areaId"></thing>
                <attribute name="desc" label="说明" inputtype="textarea" inputattrs="codeName= codeType= wrap=true fillBoth=true cols= rows=">
                    <default><![CDATA[1. 联动只能作用于是用数据仓库作为可选数据源的控件，如下拉列表、下拉多选等。
2. 设置联动只要把被联动的属性名设置到修改监听中，比如修改A联动B，那么在A的修改监听属性中增加B的名称。
3. 如果A联动B，一般情况下B需要设置一个过滤的查询条件，查询条件应该有个默认值查询的解雇为空，表单的内容为查询的条件值。]]></default>
                </attribute>
            </AbstractDataObject>
        </dataObjects>
    </DataObjectForm>
</Shell>
